Home > Products and Services > Products > microCube

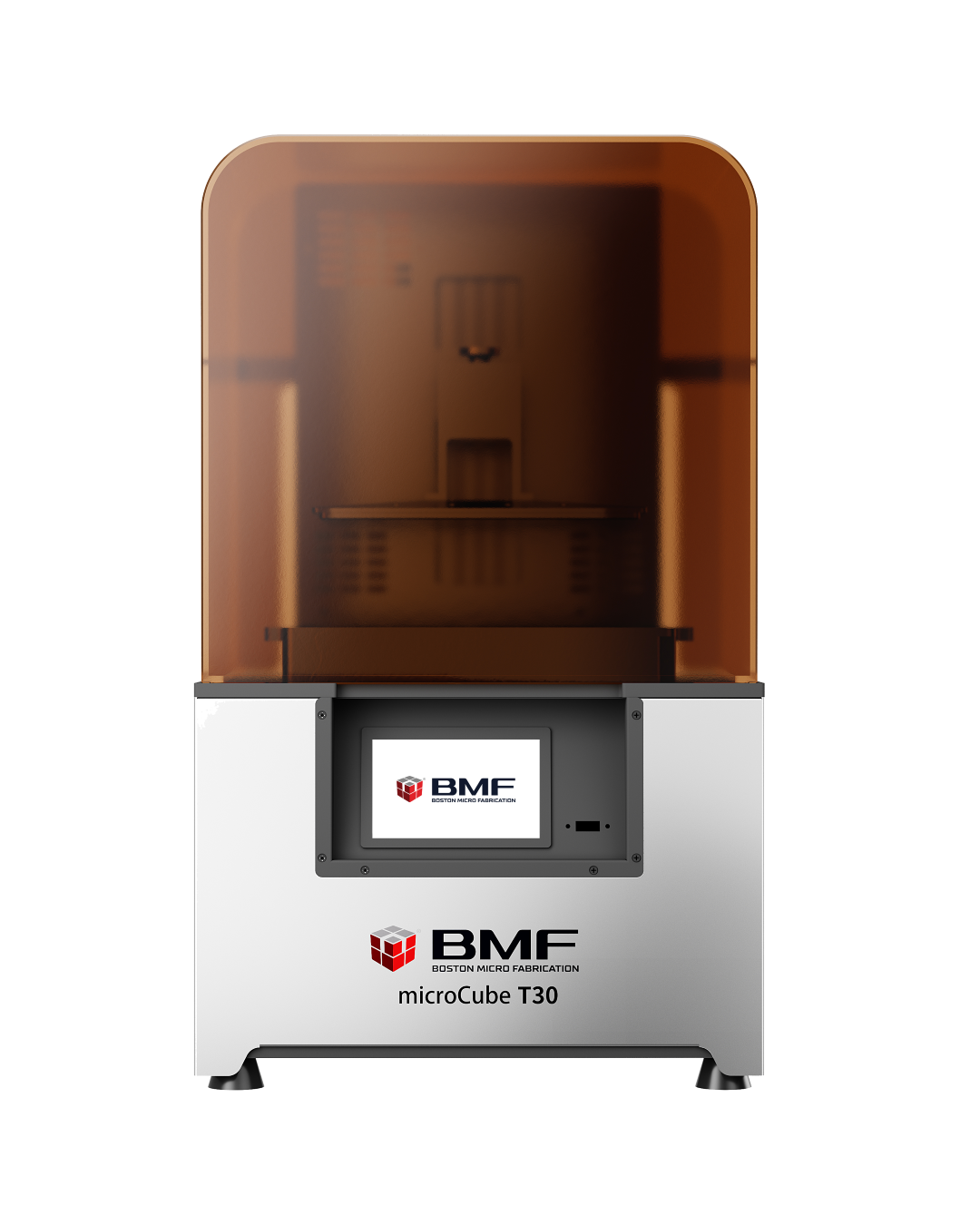

microCube T30

405nm COB

Light Source

228mm(L)*128mm(W)*190mm(H)

Build size

Contact Us
Features
  • Professional-grade

    Professional-grade

    Optical resolution of 29.5 μm, extra large printing area

  • Industrial-grade

    Industrial-grade

    Featuring KK module ball screw drive, high-transmit-tance&high-contrast yellow LCD screen, and industrial-grade UV light source

  • Easy workflows

    Easy workflows

    Touchscreen control with one-click printing

  • High success rate printing

    High success rate printing

    81-zone full-area light uniformity calibration with >90% light intensity uniformity

  • Fully open material system

    Fully open material system

    Comprehensive coverage of high-strength resin, tough resin, transparent resin, elastic resin, high-resolution resin and more

Professional-grade

Optical resolution of 29.5 μm, extra large printing area

Industrial-grade

Featuring KK module ball screw drive, high-transmit-tance&high-contrast yellow LCD screen, and industrial-grade UV light source

Easy workflows

Touchscreen control with one-click printing

High success rate printing

81-zone full-area light uniformity calibration with >90% light intensity uniformity

Fully open material system

Comprehensive coverage of high-strength resin, tough resin, transparent resin, elastic resin, high-resolution resin and more

Specifications

  • Printing techology

    MSLA

  • Light Source

    405nm COB

  • Optical resolution

    29.5μm

  • Biditectional repeatability

    ±2μm

  • Membrane

    PFA (optional with ACF)

  • Build size

    228mm(L)*128mm(W)*190mm(H)

  • Printer dimension

    400mm(L)*300mm(W)*685mm(H)

  • Light source lifespan

    >20000h

  • Printing speed

    Up to 60 mm/h (depending on material properties)

  • Layer thickness

    0.02~0.25mm (Depends on the material specifications)

  • Operating Environment

    Optimal temperature: 25–30°C; optimal humidity: 40–50%

  • LED screen

    10.3-inch high-transmittance display

  • Air Purifier

    Built-in replaceable carbon filter cartridge

  • Net weight

    33.5KG

  • Gross weight

    36KG

  • Power demand

    AC220V 3A, 500w

  • File format

    STL

Applications

  • 01 Industrial sector

    Machine tool fixtures, design validation parts, functional prototypes, visualization devices

  • 02 Consumer Electronics

    Housings and internal components for mobile phones, headphones, computers, and wearable devices

  • 03 Medical devices

    Medical models, preoperative planning models, medical device housings, and structural components

  • 04 Cultural and Creative Industries

    Anime figurines, jewelry, art ornaments, and props from film, television, and artistic productions

Industrial sector

Machine tool fixtures, design validation parts, functional prototypes, visualization devices

Consumer Electronics

Housings and internal components for mobile phones, headphones, computers, and wearable devices

Medical devices

Medical models, preoperative planning models, medical device housings, and structural components

Cultural and Creative Industries

Anime figurines, jewelry, art ornaments, and props from film, television, and artistic productions

Download manual
