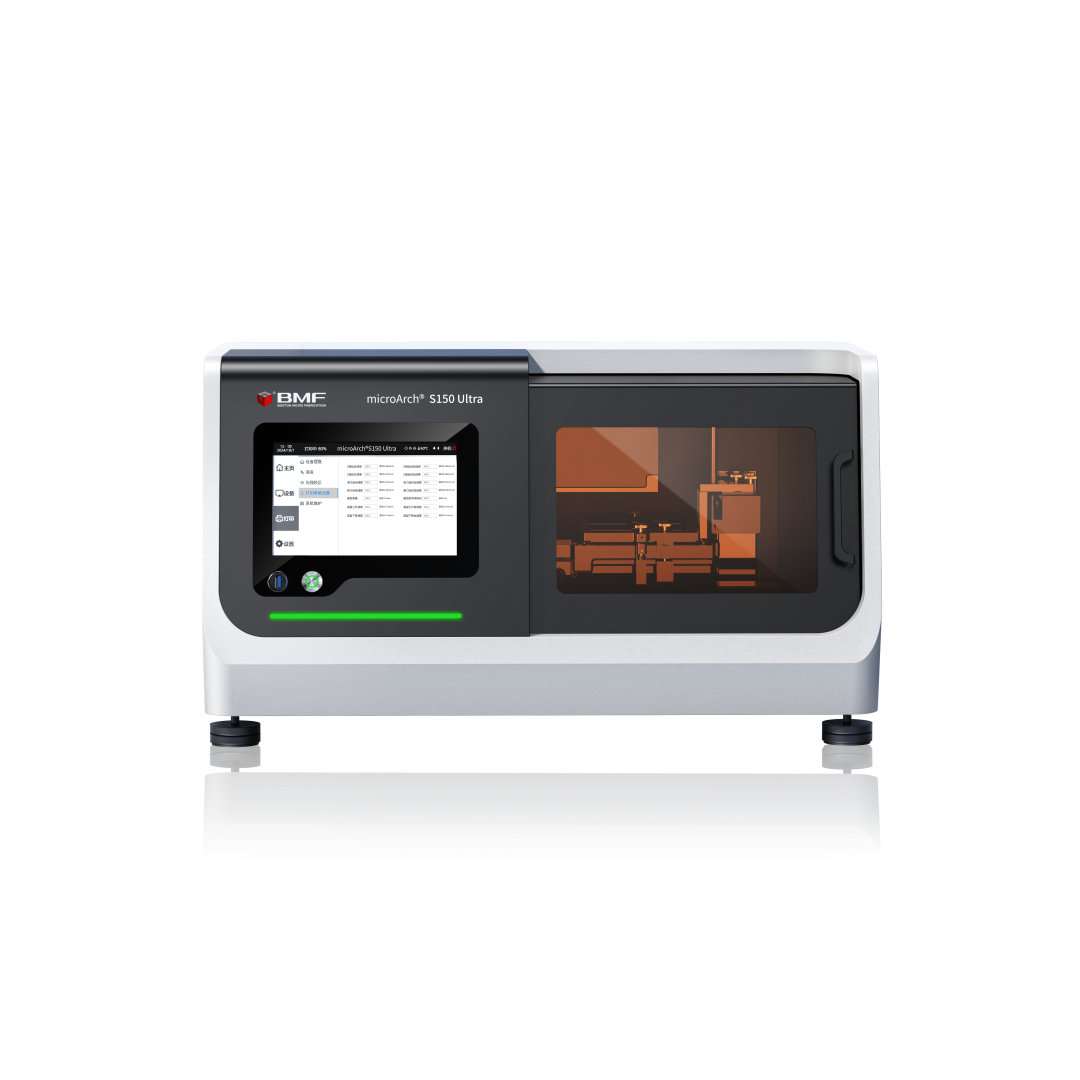

microArch^® S150 Ultra

UV LED(405 nm)

Light source

Photosensitive resin, biomaterial

Printing material

As fast as 4 seconds per layer (depending on material parameters)

Print speed

Features

High-Speed Mode

High-Speed Mode

Maximum print speed : 4s/layer
High-precision tolerance control

High-precision tolerance control

±50 μm high-precision tolerance control capability, fully compliant with industrial-grade standards
Industrial-grade stability

Industrial-grade stability

Side-shit membrane + DLC-coated printing platform
A clean and safe printing environment

A clean and safe printing environment

HEPA 13 Fresh Air Filtration System, Internal UV Disinfection System
User-friendly

User-friendly

Automatic leveling system + touchscreen operation, one-touch printing

High-Speed Mode

Maximum print speed : 4s/layer

High-precision tolerance control

±50 μm high-precision tolerance control capability, fully compliant with industrial-grade standards

Industrial-grade stability

Side-shit membrane + DLC-coated printing platform

A clean and safe printing environment

HEPA 13 Fresh Air Filtration System, Internal UV Disinfection System

User-friendly

Automatic leveling system + touchscreen operation, one-touch printing

Specifications

Light source

UV LED(405 nm)
Layer thickness

20~100μm
Optical resolution

25μm
Printing material

Photosensitive resin, biomaterial
Build size

Mode 1: Single-projector mode:27mm(L)*48mm(W)*50mm(H) Mode 2: Stitching Mode:80mm(L)*48mm(W)*50mm(H) Mode 3:Micro array mode: 80mm(L)*48mm(W)*50mm(H)
File format

STL
Printer dimensions

L800×W485×H450（mm）
Touchscreen size

10.1 inches
Print speed

As fast as 4 seconds per layer (depending on material parameters)

Applications

01 Connector Insert

Applications: Precision Electronics
Dimensions: Single part: 41 mm x 4.65 mm x 7.7 mm; Full build volume: 80 mm x 48 mm x 7.7 mm
Structural Features: Minimum wall thickness: 130 μm
Printing Time: 42 minutes per unit, 78 minutes for full sheet
Printing Comparison: Speed increased by approximately 10 times for individual units and approximately 7 times for full sheets
02 Blood Cooling Regulator

Applications: Biomedical/Regenerative Medicine
Dimensions: Individual: 30x22x20 mm³; Full-scale: 80x48x20 mm³
Structural Features: Contains a complex internal flow channel structure; helical channels have a diameter of 125 µm; curved channels have a diameter of 420 µm
Printing Time: 78 min per unit, 174 min for the full sheet
Printing Comparison: Printing speed increased by approximately 10 times for individual units and approximately 7 times for the full sheet
03 Blade Structure

Application: Micromechanics
Dimensions: 48x48x4 mm³
Structural Features: Blade wall thickness: 100 μm
Printing Time: 38 minutes
Printing Comparison: Speed increased by approximately 6 times

Connector Insert

Applications: Precision Electronics
Dimensions: Single part: 41 mm x 4.65 mm x 7.7 mm; Full build volume: 80 mm x 48 mm x 7.7 mm
Structural Features: Minimum wall thickness: 130 μm
Printing Time: 42 minutes per unit, 78 minutes for full sheet
Printing Comparison: Speed increased by approximately 10 times for individual units and approximately 7 times for full sheets

Blood Cooling Regulator

Applications: Biomedical/Regenerative Medicine
Dimensions: Individual: 30x22x20 mm³; Full-scale: 80x48x20 mm³
Structural Features: Contains a complex internal flow channel structure; helical channels have a diameter of 125 µm; curved channels have a diameter of 420 µm
Printing Time: 78 min per unit, 174 min for the full sheet
Printing Comparison: Printing speed increased by approximately 10 times for individual units and approximately 7 times for the full sheet

Blade Structure

Application: Micromechanics
Dimensions: 48x48x4 mm³
Structural Features: Blade wall thickness: 100 μm
Printing Time: 38 minutes
Printing Comparison: Speed increased by approximately 6 times

Download manual

Ultra High-Speed Micro 3D Printing System: S150 Ultra
