PDMS Molding in Microfluidic

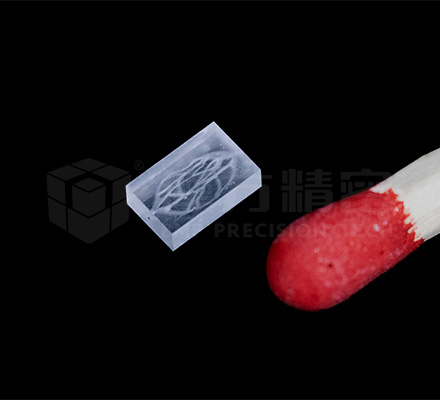

Overall dimension: 6 x 2 x 10 mm³,printing with 2 μm layer thickness. Using SR reisn (Sacrificial resin)and 2μm layer thickness to print a 6 x 2 x 10 mm³ part with minimum pore size: 18 μm, and doing PDMS molding (see the white, transparent model in the picture)

• 2 μm

  Optical resolution

• 18 μm

  Minimum channel diameter

• PDMS

  Mold-making process

Emulsion generator

Overall diomension:11.5×11.5×12mm³ with 54 pin holes.The pin holes have concentric circles of different diameters, with a minimum hole of 0.6mm and a minimum wall thickness of 0.24mm.

• 10 μm

  Optical resolution

• 54 each

  pin-hole structure

• 240 μm

  Thinnest wall thickness

Planar microfluidic chip

Overall dimensions of left microfluidic chip: 10 × 10 × 1 mm³, with 20 μm minimum channel width
Overall dimensions of right microfluidic chip: 25 × 25 × 2 mm³, with 50 μm minimum channel width

• 2/10 μm

  Optical accuracy

• 20/50 μm

  Minimum channel diameter

Microfluidic integrated system

Overall dimensions: 44 × 37 × 11 mm³, with 50 μm minimum pore size and 150 μm minimum channel diameter.The micro-nano cross-scale fabrication capabilities of PμSL technology enable integrated printing, facilitating the printing of complex and multi-module microfluidic structures.

• 10 μm

  Optical resolution

• 50 μm

  Minimum aperture

• 150 μm

  Minimum channel diameter
