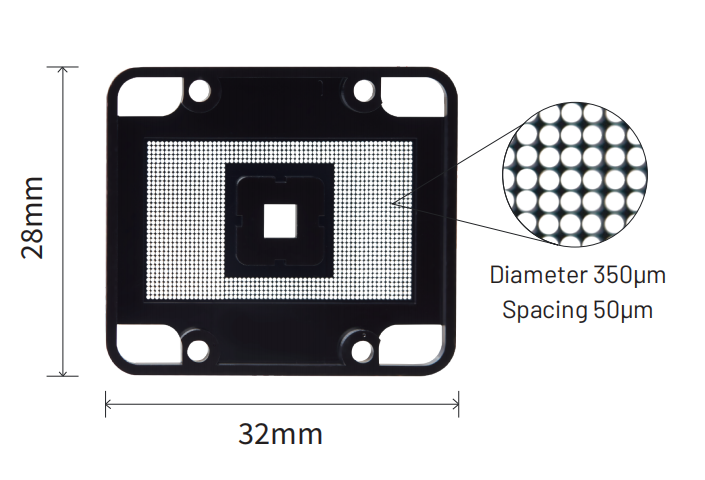

Chip Test Connectors

Each model measures 31 × 28 × 4 mm³, and up to 9 units can be printed in a single batch. Each chip test socket contains 2,100 micro-holes, with a hole diameter of 350 μm and a spacing of 50 μm between holes, making it suitable for high-volume PCB testing.

• 10 μm

  Optical resolution

• 9 pcs

  Batch printing

• 2100 +

  Microporous array

• 50 μm

  Spacing

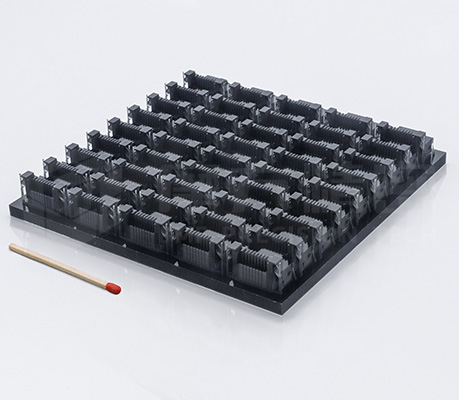

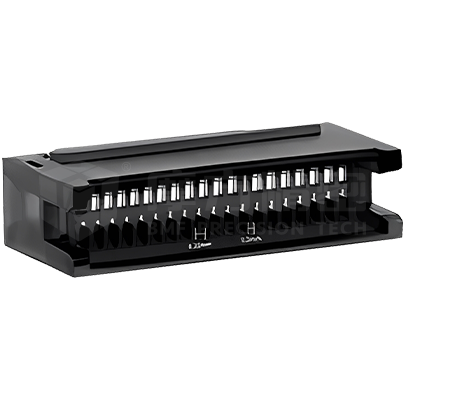

Rectangular connector housing

Rapid printing of precision structures enables quick validation of small batches

• 10 μm

  Optical resolution

• 100 μm

  Minimum wall thickness

• 140 μm

  Minimum spacing

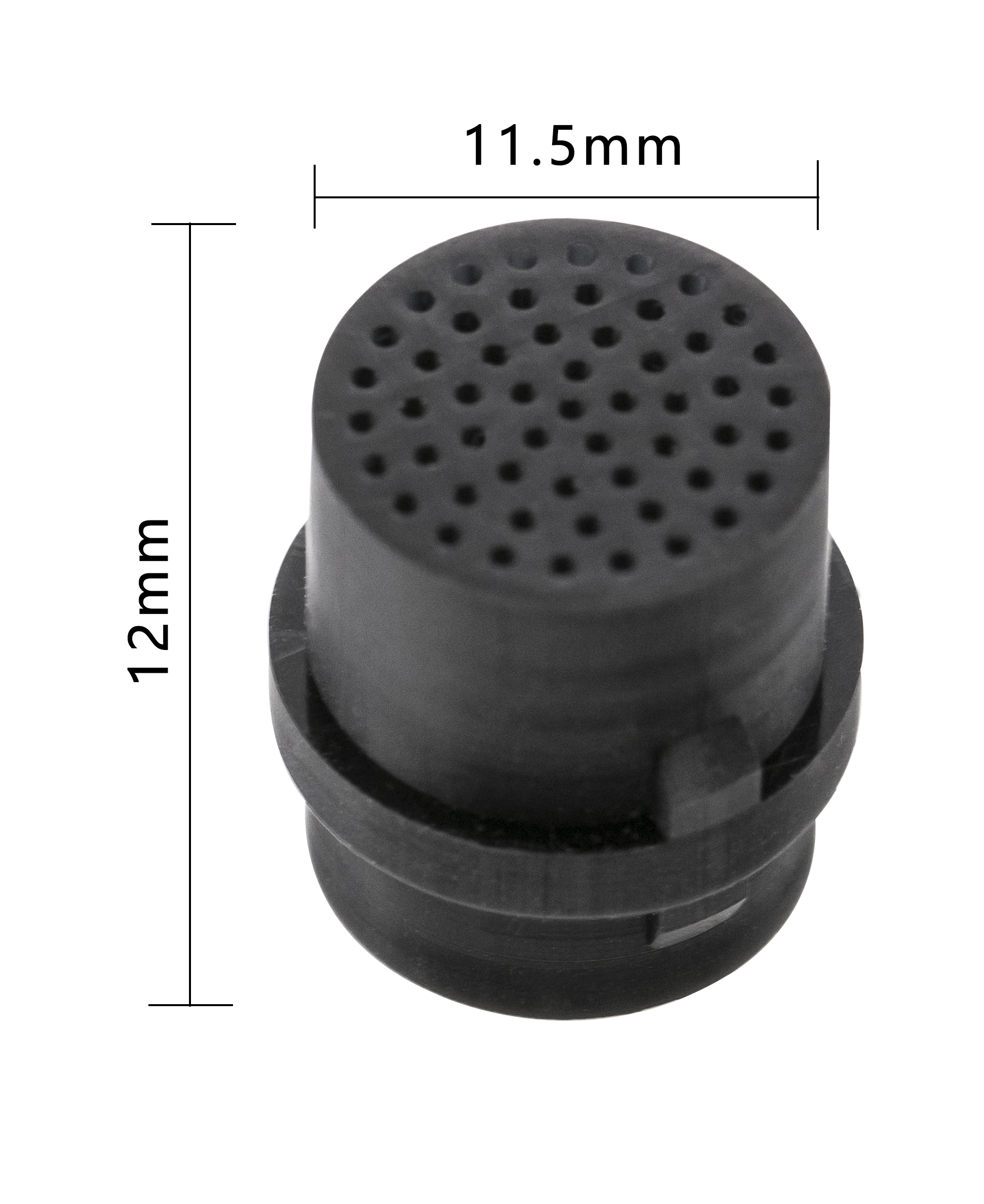

Circular connector

Dimensions: 11.5 × 11.5 × 12 mm³; 54-pin structure; the pins feature a concentric circular structure with varying diameters, with the smallest hole measuring 600 μm and the thinnest wall thickness being 240 μm.

• 25 μm

  Optical resolution

• 54 each

  Pin-hole structure

• 240 μm

  Thinnest wall thickness

RJ connector

Dimensions: 16.7 × 9.55 × 9.36 mm³, minimum wall thickness: 0.14 mm,minimum spacing: 0.28 mm. The material offers both strength and toughness

• 25 μm

  Optical resolution

• 140 μm

  Minimum wall thickness

• 280 μm

  Minimum spacing
