microArch® S130

Photosensitive resin

Printing material

2μm

Optical resolution

50mm(L)×50mm(W)×10mm(H)

Maximum build size

Contact Us
Features
  • Ultra-high precision

    Ultra-high precision

    2 μm optical resolution

  • Low layer thickness

    Low layer thickness

    5–20 μm available

  • Cross-scale

    Cross-scale

    Cross-scale micro fabrication

  • Auto focuing

    Auto focuing

    Optical monitoring system

  • Air Floating Platform

    Air Floating Platform

    Improve printing quality

  • Stable light source

    Stable light source

    Precise control of the light source

Ultra-high precision

2 μm optical resolution

Low layer thickness

5–20 μm available

Cross-scale

Cross-scale micro fabrication

Auto focuing

Optical monitoring system

Air Floating Platform

Improve printing quality

Stable light source

Precise control of the light source

Specifications

  • Light source

    UV LED(405 nm)

  • Printing material

    Photosensitive resin

  • Optical resolution

    2μm

  • Layer thickness

    5~20μm

  • File format

    STL

  • Printer Dimensions

    1720 mm(L)x750 mm(W)x1820 mm(H)

  • Printer Weight

    660kg

  • Power demand

    220-240VAC 50/60 Hz,2 kW

  • Build size

    Mode 1: Single exposure mode: 3.84 mm(L)x2.16 mm(w)x10 mm(H) Mode 2: Stitching exposure mode: 38.4 mm(L)x21.6 mm(w)x10 mm(H) Mode 3: Micro array mode: 50 mm(L)x50 mm(W)x10 mm(H)

  • Maximum build size

    50mm(L)×50mm(W)×10mm(H)

Applications

  • 01 Micro-dome hierarchical structure

    Application: Micromechanics
    Overall dimensions: 9 x 9 x 1.5 mm³
    Structural features: Secondary microcolumn diameter 28 μm, height 70 μm

  • 02 Biomimetic wheat bran hierarchical structure

    Application: Bionics
    Overall dimensions: 1.4 × 1.2 × 5 mm³
    Structural features: Spine base diameter 100 μm, length 250 μm

  • 03 Mechanical lattice structure

    Application: Mechanical metamaterials
    Overall dimensions: 1.2 × 0.8 × 0.6 mm³
    Rod diameter: 8 μm

Micro-dome hierarchical structure

Application: Micromechanics
Overall dimensions: 9 x 9 x 1.5 mm³
Structural features: Secondary microcolumn diameter 28 μm, height 70 μm

Biomimetic wheat bran hierarchical structure

Application: Bionics
Overall dimensions: 1.4 × 1.2 × 5 mm³
Structural features: Spine base diameter 100 μm, length 250 μm

Mechanical lattice structure

Application: Mechanical metamaterials
Overall dimensions: 1.2 × 0.8 × 0.6 mm³
Rod diameter: 8 μm

Download manual
Industrial 3D Printing System

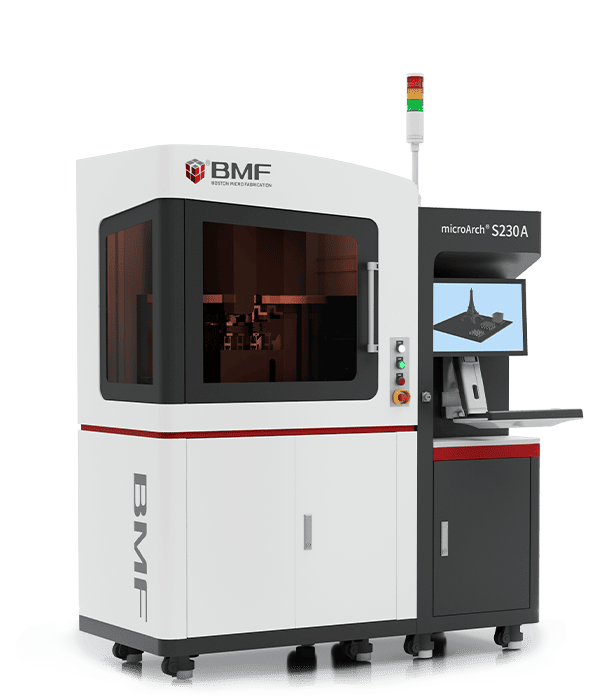

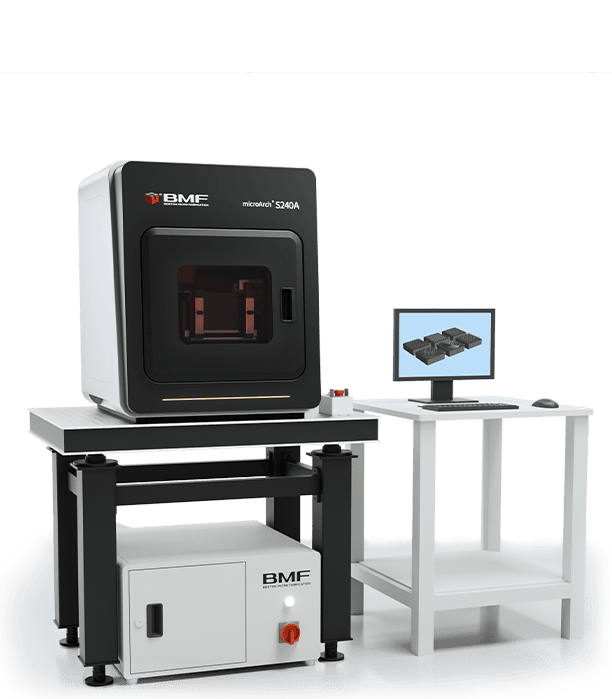

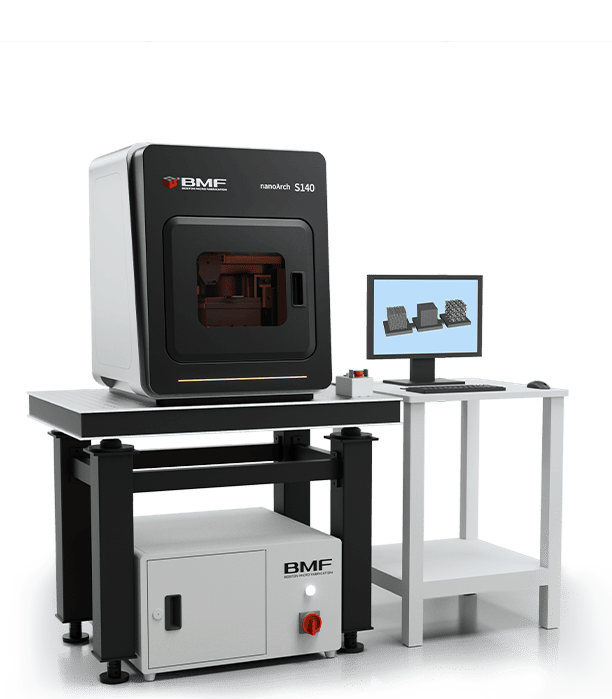

Other Products
